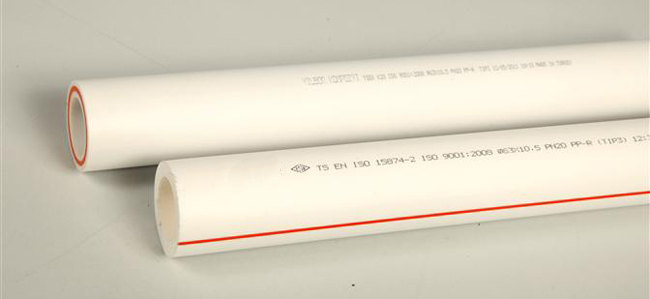

PPRC Pipes

CORPET pipes are manufactured from the raw material Polypropylene Random Copolymer (Type 3), making it resistant to chemical materials and are used in the sanitary installation systems, for the hot-cold water supply systems.

The PPR-C pipes and fittings are manufactured according the TS 11755, TSE EN ISO 15874-3, TS 9937 standards and own a long service life.

These pipes are the best choice in heating systems and hot-cold water handling systems due to their characteristics of resistance to high temperatures and pressure.CORPET manufactures PPR-C pipes and fittings in white and grey colors but can also manufacture them in different other colors for specific enquiries.

Corpet PPRC Pipes

The Table of Service Lives
Operating Pressure	20 C degrees	60 C degrees
6	>100 Yıl	>50 Yıl
8	>100 Yıl	>50 Yıl
10	>100 Yıl	>50 Yıl
20	>100 Yıl	K.U.D
25	100 Yıl	K.U.D
27	25 Yıl	K.U.D
30	1 Yıl	K.U.D

Fusion Welding Applicaton Table
mm	Welding Depth mm	Heating Time sn.	Connect Time sn.	Cooling Down Time sn.
20	20	5	5	5
25	25	7	7	7
32	32	8	8	8
40	40	12	12	12

Clamp Distances Based on Water Temprature
mm	20 C degrees	30 C degrees	40 C degrees	50 C degrees	60 C degrees	70 C degrees	80 C degrees
20	80	75	70	70	65	60	60
25	85	85	85	80	75	75	70
32	100	95	90	85	80	75	70
40	4110	110	105	100	95	90	85

Twisting Radius
mm	Twisting Radius Min.(R=8x d)
20	160
25	200
32	256
40	320

	Corpet PPRC Pipe Pn 20
	Size (mm)	Packing (Piece)
	20-3.4	120
	25-4.2	100
	32-5.4	60
	40-6.7	32
	50-8.4	20
	63-10.5	16
	75-12.5	4
	90-15.0	4
	110-18.3	4

	Corpet PPRC Glass Fiber Reinforced Composite Pipe
	Size (mm)	Packing (Piece)
	20-2.8	120
	25-3.5	100
	32-4,4	60
	40-5,6	32
	50-6,9	20
	63-8,7	16
